Hersh Design

Azimuth

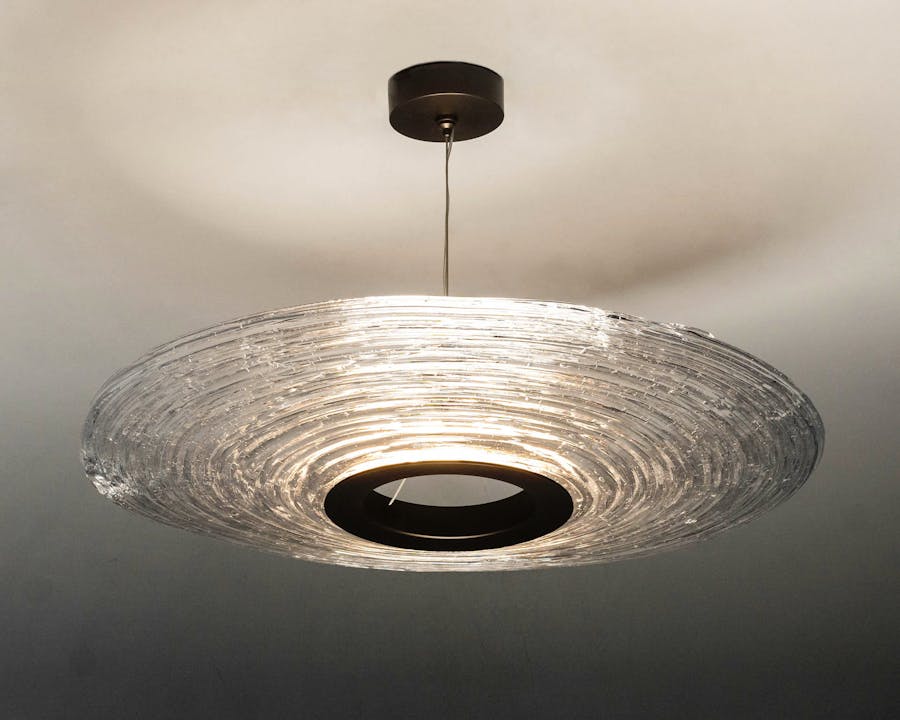

Molten glass, cast around a open core, organically flows and twists as it coalesces into a solid. Bubbles and flow lines are completely unique to each casting and may vary significantly. Central metal ring supports glass and holds LEDs.

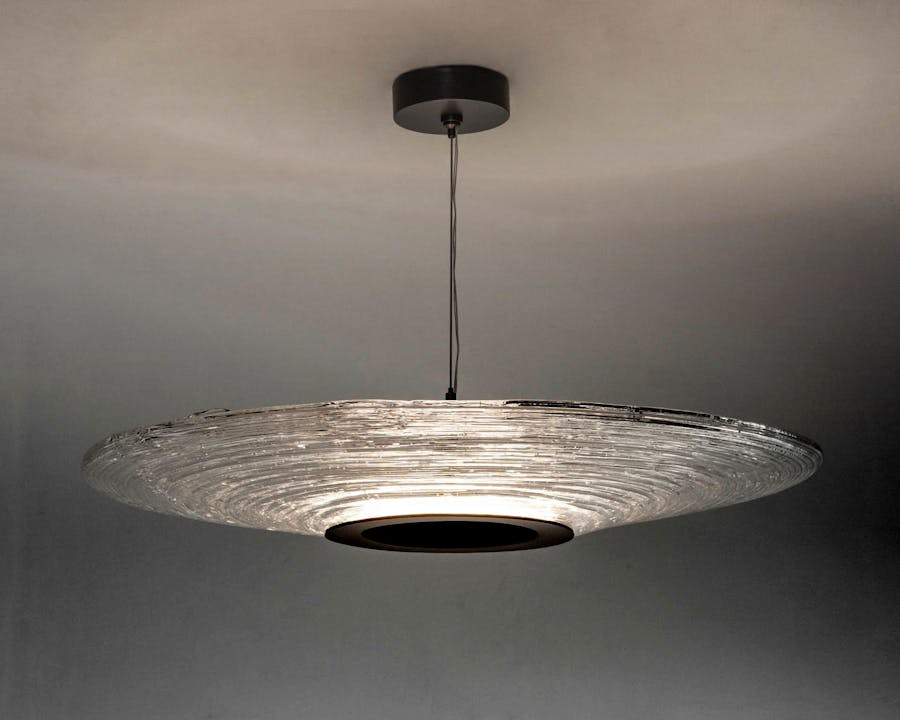

Shown in Black Brass finish

Price, finish, and lead times may vary and may not reflect the image shown. Please request quote for final price and specific details.

Information

Dimensions

Fixture 32" DIA x 4" H
Canopy 5.5" DIA x 1"
Min OAD 20"
Weight: approx 80 lbs

Other Standard Sizes:
26" DIA x 4" H
Canopy 5.5" DIA x 1"
Min OAD 14"

All standard cable mounting allows for field adjustable OAL of up to 8'

Materials

Hand cast glass
Metal canopy
Mounting Cable + Powercord

2700K 95+ CRI LED, Dimmable Drivers (ELV) 120V Input, 40W
Central Aircraft Cable with adjustable height, 8’ max. Suspended from a 5”x2” Canopy with integral driver.

Finishes

Brushed Brass
Black Brass
Antique Brushed Brass
Brushed Nickel

Glass: Clear / Bubbles
Glass varies significantly, with more or less striations, bubbles, and texture from samples, due to hand-made process.

Customization

For OAL over 8', please enquire.

Driver included in canopy standard; optional small 5" canopy with drivers remotely located.

Downloads

Download Azimuth
